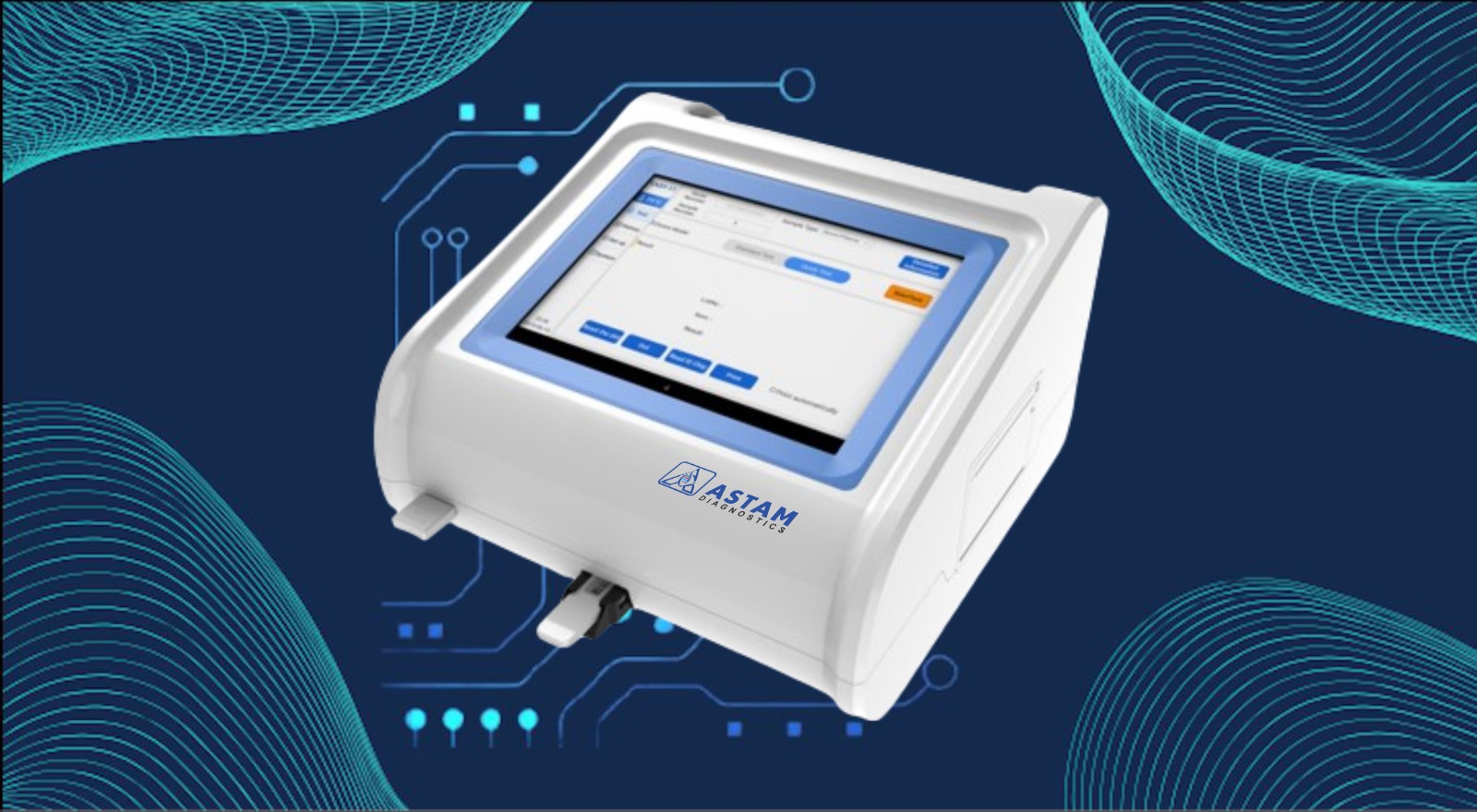

Plain Model

Plain Model

PRODUCT PARAMETERS (Upcoming)

  • Size : 240*214*120mm
  • Weight : <3 Kg
  • Display screen : 7-inch
  • Touch screen : Capacitive touch
  • Operating System : Android 4.4
  • Methodology : Time resolution
  • Excitation light : 365nm (Customizable)
  • Emission light : 610nm (Customizable)
  • Number of channels : 1 channel
  • Card insertion method : Manual
  • Printer : Thermal printer
  • Calibration reading : CodeCard
  • Application card types : Customizable
  • Card Barcode : QR Code
  • Lithium battery : Optional
  • ID card module : External (optional)
  • 4G module : Optional
  • GPS module : Optional
  • Date Interface : Serial port, USB, WLAN, Wifi, BT
  • Within-channel coefficient of variation (VC) : 1% (standard card series)
  • Between-run deviation : 3% (standard card series)
  • Accuracy : Bis%<3% (standard card series)
  • Sample Types : 40+ types, customizable
  • Test modes : Quick mode & standard mode
  • Automatic Printing : Available
  • LIS interface : Available
  • Data export : USB flash drive
  • Data Storage : 50,000 records
  • Historical records : Available
  • language : English, additional languages possible
  • Print reports via PC : Available
  • Power requirements : 110-240VAC 50/60Hz
  • Operating Environment : Temperature: 100C-300C Humidity: 5%-80% Atmospheric pressure: 85.0-106.0kPa

PRODUCT SUPERIORITY

  • Plug and play, user-friendly
  • Built-in printer
  • Automatic printing of test reports
  • Standard Rs232, USB, LAN, and other interfaces for connecting to LIS
