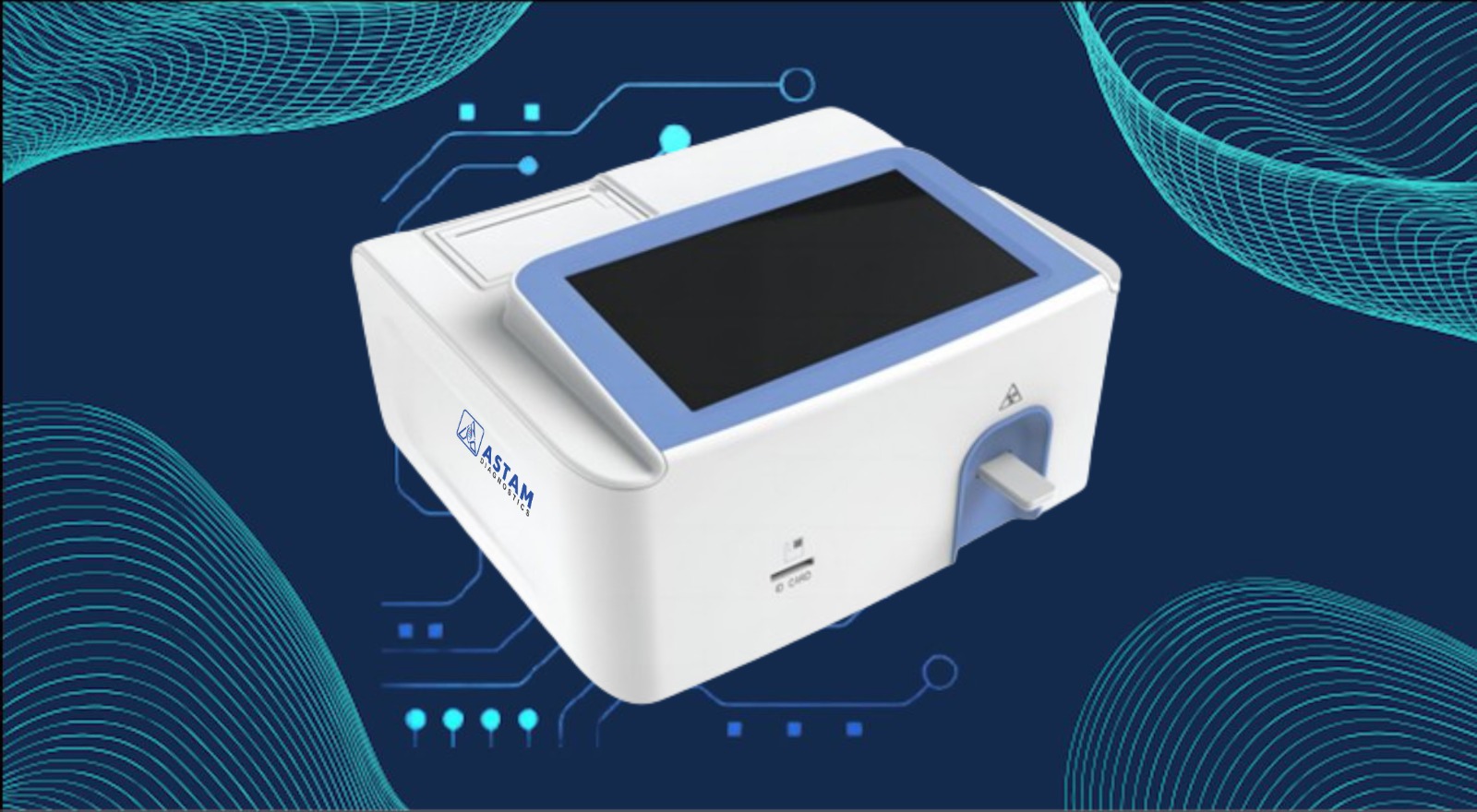

Pro Model
PRODUCT PARAMETERS (Upcoming)
Size :
245*270*160 mm
Weight :
<3 Kg
Display screen :
8
Touch screen :
Capacitive
Operating System :
Android 5.1
Methodology :
Time resolution
Excitation light :
365nm (Customizable)
Emission light :
610nm (Customizable)
Number of channels :
1 channel
Card insertion method :
Automatic
Printer :
Thermal printer
Calibration reading :
Code
Application card types :
Customizable
Card Barcode :
QR Code
Lithium battery :
Optional
ID card module :
External (optional)
4G module :
Optional
GPS module :
Optional
Date Interface :
Serial port, USB, WLAN, Wifi, BT
Within-channel coefficient of variation (VC) :
1% (standard card series)
Between-run deviation :
3% (standard card series)
Accuracy :
Bis%<3% (standard card series)
Temperature Control :
Heating with a setting range degree
Sample Types :
40+ types, customizable
Test modes :
Quick mode & standard mode
Automatic Printing :
Available
LIS interface :
Available
Data export :
USB flash drive
Data Storage :
50,000 records
Historical records :
Available
language :
English, additional languages possible
Print reports via PC :
Available
Power requirements :
110-240VAC 50/60Hz
Operating Environment :
Temperature: 10C-30C Humidity: 5%-80% Atmospheric pressure: 85.0-106.0kPa
PRODUCT SUPERIORITY
Plug-and-play, user-friendly
8-inch capacity touch screen for easy operation
Automatic card slot insertion and removal
Constant temperature incubation for more accurate detection results
